Stinger Winch

$348.50

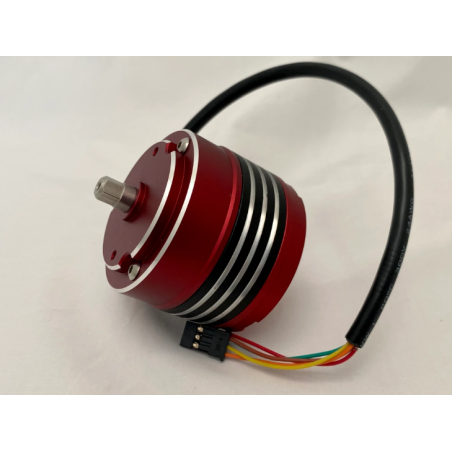

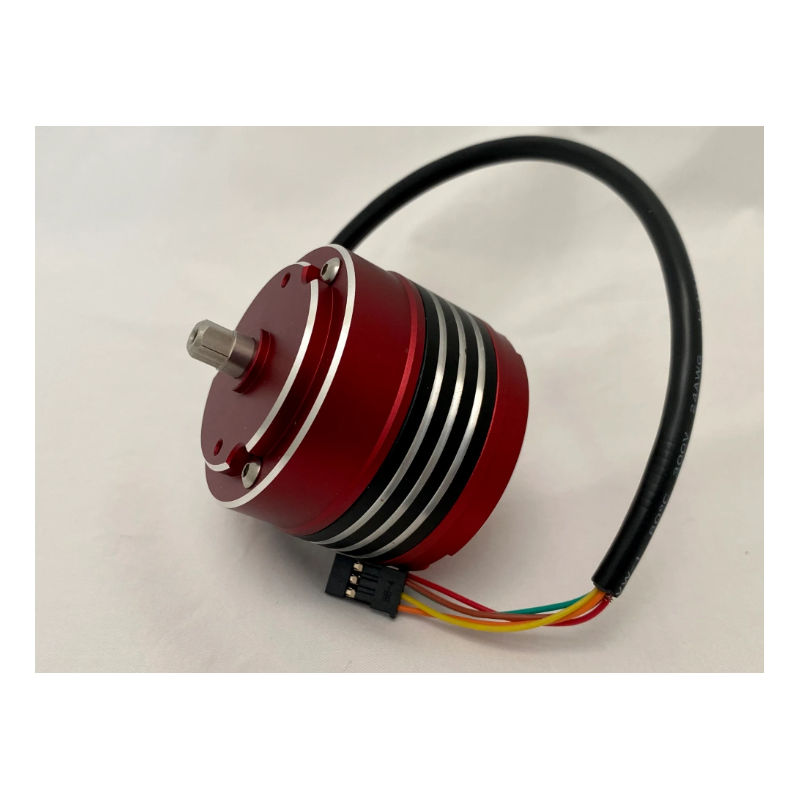

Red Ant Stinger IOM Performance Winch

Engineered for competitive IOM racing, the Stinger features refined two-speed firmware for smooth micro-adjustments in light air and rapid full-speed response when it counts.

High-torque brushless power, waterproof construction, advanced protection systems, and compatibility with RMG drums make this a serious upgrade for performance-focused sailors.

Note: winch drum is not included - please view our winch drums and add to your order.

Quantity
Last items in stock

  Secure Checkout

Secure SSL encrypted checkout powered by Stripe.

  Shipping & Delivery

Fast dispatch via Australia Post and trusted freight partners.

🔥 Red Ant Stinger Winch – IOM Performance Edition

Precision when you need finesse. Power when you need speed.

The Red Ant Stinger IOM Winch features intelligent two-speed response firmware, delivering smooth, controlled sheet movement for light-air trimming and rapid full-speed response when conditions demand it.

Designed specifically for competitive IOM racing, the Stinger combines high torque, brushless efficiency and advanced onboard protection systems for reliable performance across all conditions.

  • Refined two-speed response firmware
  • High-torque brushless motor
  • Fully waterproof construction
  • Compatible with RMG drums
  • Mounting dimensions align with common IOM winch installations

Technical Specifications

Specification @6.0V @7.4V @8.4V
Torque 18.4 kg-cm 22.5 kg-cm 25.2 kg-cm
Speed 3.14 rev/sec 3.78 rev/sec 4.16 rev/sec
No. Turns 6 6 6
Weight 145g 145g 145g
Stall Current 6.6A 7.7A 8.7A
No Load Current 450mA 550mA 650mA

Idle Current: 20mA
Waterproof: Yes
Motor: Brushless
Output Shaft: Stainless Steel

Mounting & Compatibility

  • Compatible with RMG drums
  • Mounting diameter: 52mm
  • Mounting height: 43mm below deck
  • Suits standard IOM winch installation layouts

Advanced Protection Systems

  • Over Voltage: Above 9.0V protection mode activates; auto re-engages when voltage normalises.
  • Low Voltage: Below 4.0V protection mode activates; auto re-engages when voltage normalises.
  • Stall / Locked Rotor: Torque reduces to zero over 5 seconds; resets after power cycle.
  • Temperature Protection: Above 85°C torque reduces by 20%; restores when temperature returns to normal.
  • Signal Loss: Stops at last position and reactivates when signal returns.

Specifications as listed by Red Ant Radio Yachts.
