There are 6 products.
Mast ram to suit 10.8mm-11.1mm dia. mast. Stainless steel and plastic. This is the style of mast ram that remains on the hull and is normally bulkhead mounted.

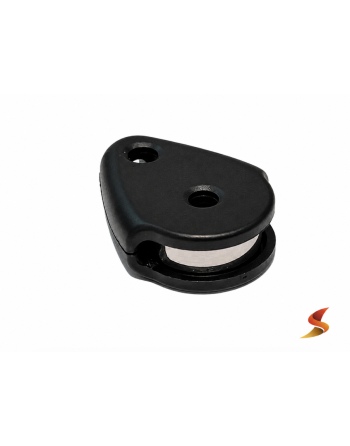

Hales single deck mounted block.
| Length: | 21.4mm |
| Width: | 10mm |
| Height (excl screw): | 5.1mm |
| Height of Screw Head: | 1.7mm |
| Sheave Diameter: | 7.3mm |
| Max Line Size: | 2mm |
| Screw Spacing: | 16mm |
| Length of Screws: | 20mm |
| Weight: | 3g |
| Screw Thread: | M2 x0.4 |
Hales single block with shackle
| Length: | 17.5mm |
| Length (incl shackle): | 23mm |
| Width: | 10.4mm |
| Body Thickness: | 5.1mm |
| Thickness across shackle: | 8mm |
| Sheave Diameter: | 7.3mm |
| Max Line Size: | 2mm |
| Weight: | 2g |
Hales double deck mounted block.
| Length: | 21.4mm |
| Width: | 10mm |
| Height (excl screw): | 8.3mm |
| Height of Screw Head: | 1.7mm |
| Sheave Diameter: | 7.3mm |
| Max Line Size: | 2mm |
| Screw Spacing: | 16mm |
| Length of Screws: | 20mm |
| Weight: | 4g |
| Screw Thread: | M2 x0.4 |
Plastic through deck sheet lead comes as two pieces with mounting screws and 100mm 2mm ID PTFE tube.
Ideal for allowing your sheets to pass through the deck, simply drill a hole in the deck for the tube to pass through and holes for the mounting screws. One piece mounts from underneath the deck (with nuts in the body of the fitting) and place the second piece on top and screw the mounting screws in. It's easy to mount and with no fiddly tricky placing of nuts on screws under the deck.
A perfect solution for those with Vickers boats looking to remove the aft mounted snorkel.
Rigging screw - M3. Single end design, nickel plated brass, M3 thread, self locking design, 1.2 mm Ø stainless steel wire. This self locking rigging screw can be used in a NON SELF LOCKING mode by removing the O ring. Add a normal M3 nut or a Nyloc self locking nut as preferred to provide the lock nut function.
